Navitron Solar collector mounted on SS frame which hangs from straps secured to roof joists. NAVITRON
SOLAR PROJECT 2008

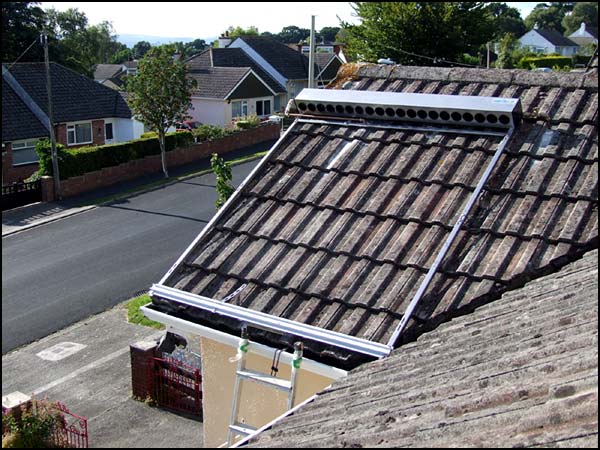

Navitron
Solar collector mounted on SS frame which hangs from straps secured to roof
joists. NAVITRON
 |
 |
|

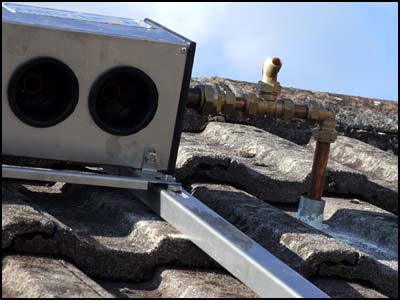

Hot
water outlet through Aluminium tube into roof. with bleed tap.
|

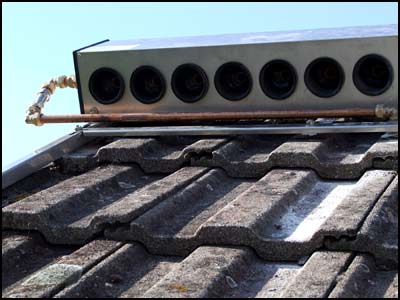

Cold
water feed to collector via isolator valve.
|
 |
 |
|

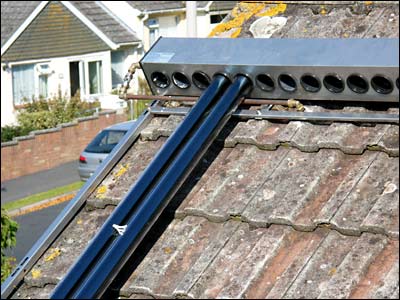

First
two tubes in place - Septmeber 08
|

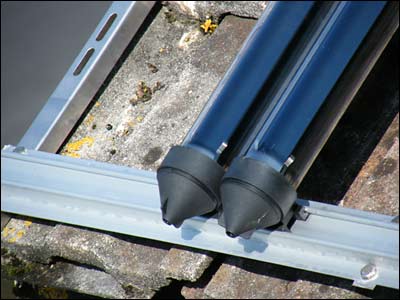

Fixing
/ support cups
|
 |
 |
|

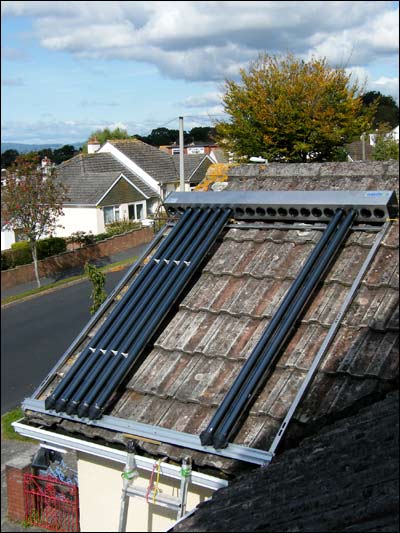

Panel
with seven tubes installed.
|

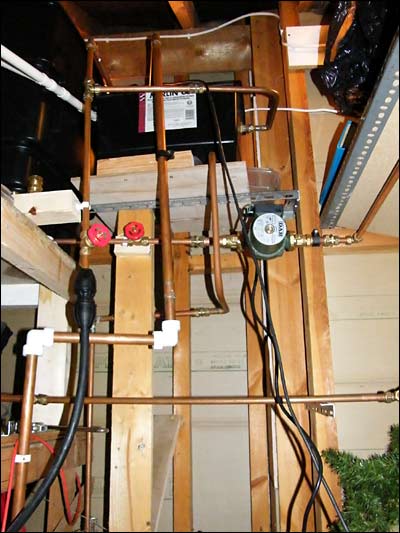

Plumbing
feeds.
|
 |
 |
|

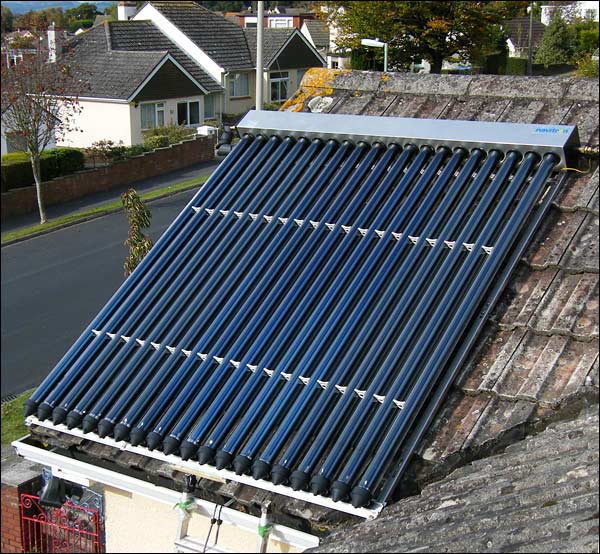

More
sunshine.....
